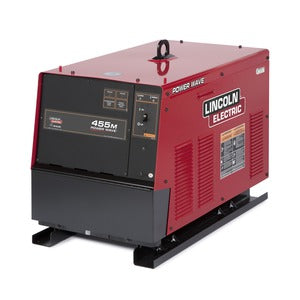

The Lincoln Electric POWER WAVE 455M (K2202-1) is a fully digital, networked inverter-based welding power source delivering 450 amps of output across MIG (GMAW), flux-cored (FCAW), pulsed MIG, STT, and DC TIG processes. Built for demanding production and shipbuilding environments, the Power Wave 455M incorporates Lincoln's Waveform Control Technology for repeatable, optimized arc characteristics across all processes. At $8,937, this unit is Lincoln's flagship semiautomatic platform for shops requiring both peak output and digital process control.
| Parameter | Value |
|---|---|
| Model / SKU | POWER WAVE 455M / K2202-1 |
| Output Range (Amps) | 5–570 A DC |
| Rated Output @ 100% Duty Cycle | 400 A / 34 V |
| Rated Output @ 60% Duty Cycle | 450 A / 38 V |
| Open Circuit Voltage | 70 V |
| Input Power | 208–575 V, 3-phase, 50/60 Hz |
| Input Current (460 V / 450 A) | 44 A |
| Processes | MIG (GMAW), Pulsed MIG, FCAW, STT, DC TIG, SMAW |
| Network Connectivity | ArcLink, DeviceNet (optional), Ethernet (optional) |
| Dimensions (H × W × D) | 20.5 × 13.5 × 25 in (521 × 343 × 635 mm) |
| Weight | 91 lb (41 kg) |
| IP Rating | IP23 |
| Standards | CE, CSA, UL, IEC 60974-1 |
The POWER WAVE 455M is engineered for high-production fabrication environments where arc consistency and process flexibility are non-negotiable. Primary industries include:
- Shipbuilding and offshore fabrication — Handles structural steel, high-strength plate, and exotic alloys with precision pulsed MIG waveforms.
- Heavy equipment and pressure vessel manufacturing — Full-spectrum process capability from root passes (STT) to fill and cap (pulsed MIG or FCAW).
- Automotive body-in-white and tier suppliers — Repeatable waveforms reduce spatter and rework on coated steels and aluminum.
- Structural steel and construction fabrication — FCAW-G and FCAW-S capability for outdoor and indoor structural welds.
- Job shops requiring multi-alloy work — Waveform library supports mild steel, stainless, aluminum, and nickel alloys on a single machine.
The POWER WAVE 455M differentiates itself through Lincoln's proprietary Waveform Control Technology, which allows engineers to shape the arc waveform digitally rather than relying on fixed transformer taps. Key capability highlights:
- Waveform Control Technology — Choose from hundreds of optimized waveforms across processes and alloys. Waveforms are stored on-board and can be updated via USB or ArcLink network.
- STT (Surface Tension Transfer) — Ultra-low-spatter open-root pipe and sheet metal welding. The STT waveform actively detects droplet detachment and reduces current at the moment of transfer.
- Pulsed MIG — One-pulse-per-drop metal transfer at reduced heat input, enabling out-of-position welding on thin plate or high-strength steels.
- ArcLink Digital Network — Connects to Power Feed wire feeders (84, 84PM, 10M) for full remote voltage and wire speed control. Eliminates voltage drop errors in long-lead installations.
- Production Monitoring Ready — When paired with Lincoln's Production Monitoring 2.0 software, the 455M logs arc-on time, wire consumption, and weld parameters per job.
- Fanless Design — Variable-speed fan-on-demand cooling reduces airborne contamination ingestion and lowers operating noise.
The POWER WAVE 455M is designed to operate as the power source within Lincoln's ArcLink ecosystem. Compatible equipment includes:
- Lincoln Power Feed 84 Single Boom Feeder (K3328-1) — Recommended single-feeder configuration for manual semiautomatic welding.
- Lincoln 4-Pack Rack FLEXTEC 450 (K2956-2) — For multi-operator rack systems using compatible FlexTec inverters alongside Power Wave units.
- Power Feed 84PM and 10M feeders — For robotic and automated cells.
- Magnum PRO and Magnum SG gun families — Lincoln-rated consumable guns, contact tips, and liners optimized for 450 A continuous output.
- K2956 series caster kits and interconnect cables — For mobile production cell configurations.
For the full welding supplies and accessories catalog, visit the WeldingMart Welding Supplies & Equipment hub.
What processes does the POWER WAVE 455M support?
The K2202-1 supports MIG (GMAW), pulsed MIG, flux-cored (FCAW-G and FCAW-S), STT (Surface Tension Transfer), DC TIG, and stick (SMAW) processes. Process capability is stored as digital waveforms and can be expanded via Lincoln's Waveform Control Technology software.
What wire feeders are compatible with the POWER WAVE 455M?
The Power Wave 455M communicates via ArcLink digital protocol and is compatible with Lincoln's Power Feed family — including the Power Feed 84, 84PM, and 10M. Across-the-arc feeders and analog feeders are not natively compatible without an adapter module.
What is the duty cycle of the POWER WAVE 455M?
The 455M is rated 400 A at 100% duty cycle (34 V) and 450 A at 60% duty cycle (38 V). For continuous production welding, the 400 A / 100% rating is the appropriate operating ceiling.
Does the POWER WAVE 455M support Production Monitoring?
Yes. When connected via ArcLink or Ethernet to Lincoln's Production Monitoring 2.0 software, the 455M can log arc parameters, wire consumption, and productivity metrics per weld procedure and per operator. This is factory-optional and requires a network interface module.
What input power does the POWER WAVE 455M require?
The unit accepts 208–575 V, 3-phase, 50/60 Hz input, making it suitable for both US 460 V industrial panels and international 380 V or 575 V services. Input current at 460 V is 44 A at rated output.
Is the POWER WAVE 455M CE-certified?
Yes. The K2202-1 carries CE, CSA, and UL certifications and complies with IEC 60974-1. It is suitable for installation in international markets requiring CE marking.
