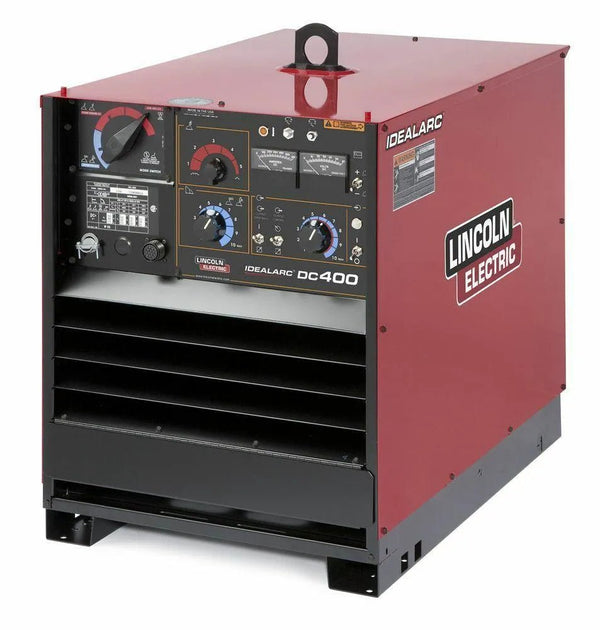

The Lincoln Electric IDEALARC DC-400 (K1308-25) is a heavy-duty, 400-ampere constant-current/constant-voltage DC arc welder built for industrial fabrication, heavy structural work, and multi-shift production environments. Rated at 400 A / 36 V at 60% duty cycle and capable of 350 A at 100% continuous duty, this transformer-rectifier machine serves as a reliable workhorse for SMAW (Stick), GMAW (MIG), FCAW (Flux-Cored), and DC TIG processes in a single package. Its dual process selector (CC/CV) positions it as a flexible power source for shops running multiple welding procedures on the same machine.
Built on Lincoln Electric's Idealarc platform — designed and manufactured in Cleveland, Ohio — the DC-400 uses a copper-wound transformer with a silicon controlled rectifier (SCR) output stage. The SCR design provides electronically smooth arc characteristics with low ripple current, reducing spatter and improving bead appearance compared to older diode-bridge rectifiers. The K1308-25 designation indicates 230/460 V primary, three-phase, 60 Hz input configuration.
| Output Type | DC Constant Current (CC) / Constant Voltage (CV) |
|---|---|
| Welding Output Range | 40 – 400 A (CC); 14 – 44 V (CV) |
| Rated Output | 400 A / 36 V @ 60% duty cycle |
| 100% Duty Cycle Output | 350 A / 34 V |
| Open Circuit Voltage (CC) | 80 V |
| Input Voltage | 230/460 V, 3-phase, 60 Hz |
| Processes Supported | SMAW, GMAW, FCAW, GTAW (DC) |
| Output Stage | SCR (Silicon Controlled Rectifier) |
| Electrode Capacity | 3/32 in – 5/16 in (SMAW) |
| Cooling | Fan-on-demand, air-cooled |
| Weight | 310 lb (141 kg) |
| Dimensions (H × W × D) | 26.0 × 16.5 × 35.5 in |
| Output Terminals | Twist-Mate™ |
| Auxiliary Power | 115 V / 15 A AC receptacle (front panel) |
The DC-400 delivers best results in these high-demand environments:
- Heavy structural steel fabrication: 5/16 in and 3/8 in iron-powder electrodes at 300–400 A for rapid fill on weld joints in bridges, pressure vessels, and heavy equipment frames.
- FCAW (flux-cored) semi-automatic welding: In CV mode, the DC-400 connects directly to Lincoln's LN-7, LN-8, or LN-9 wire feeders via ArcLink or analog control cables, making it a production FCAW power source for shipbuilding, structural steel, and heavy fabrication.
- Submerged arc welding (SAW): In CV mode at high amperage settings, the DC-400 serves as a power source for SAW applications when paired with Lincoln's NA-3 or NA-5 automatic wire feeders — an economical entry into mechanized welding.
- Pipeline and maintenance welding: In CC mode with high OCV (80 V), the DC-400 easily strikes and sustains arc with E6010 and E6011 cellulosic electrodes for pipeline root passes and maintenance work in difficult field conditions.
- Training environments: The DC-400 is a common machine in welding schools and apprenticeship programs where students need a stable, forgiving machine to learn fundamentals before transitioning to inverter-based equipment.
The DC-400 front panel presents a range selector (controlling coarse amperage/voltage), a fine adjustment knob, a process selector switch (CC/CV), and polarity selection terminals. Follow these steps for each process:
SMAW (Stick) Setup:
- Set the process selector to CC.
- Connect the electrode cable to (+) for DCEP (standard for E7018, E6013) or (−) for DCEN (E6010 with minimum spatter preference).
- Use the coarse range selector to bracket your target amperage, then fine-tune with the output control knob.
- Strike and adjust. At 400 A, the arc is forceful — reduce arc length and travel speed proportionally.
GMAW/FCAW (MIG/Flux-Core) Setup:
- Set the process selector to CV.
- Connect the wire feeder control cable to the 14-pin receptacle on the rear panel.
- Set output voltage using the coarse range plus fine control. A starting point for 0.045 in E70S-6 wire: 26–28 V arc voltage at 250–300 IPM wire speed.
- The wire feeder's WFS (wire feed speed) control independently sets amperage. The DC-400's CV output maintains the preset voltage while the feeder adjusts WFS for self-regulation.
The IDEALARC DC-400 is compatible with a wide range of Lincoln Electric accessories:
- Wire feeders: Lincoln LN-7, LN-8, LN-9 (via 14-pin control cable); LN-25 Pro (via direct connection); NA-3/NA-5 (for SAW).
- Electrode holders: Lincoln K875 300-A or K904 400-A for heavy electrode work.
- Remote controls: Lincoln K857 remote amperage/voltage control, K924-4 100-ft remote kit.
- Work leads: Lincoln K2485 3/0 electrode cable, 50 ft for high-amperage stick applications.
- Related products: Lincoln K2394-1 Electrode Holder & Work Clamp Set and Lincoln Idealarc 250 for lower-amperage companion applications.
- Quarterly air purge: Use 30 PSI compressed air to blow dust, scale, and flux from all internal components — especially the SCR heatsink fins and transformer windings. Do not use compressed air from oily compressors without a filter/dryer.
- SCR heatsink inspection: Inspect the rectifier heatsink stack twice yearly. Discoloration, burned silicone, or cracked devices indicate thermal overload. Replace the SCR assembly only with Lincoln-specified replacement parts (consult part number S21956).
- Contactor inspection: The main contactor closes when the machine is energized. Listen for a clean, single click on startup. Chattering or sustained buzzing indicates worn contacts — have a qualified technician replace the contactor.
- Range switch maintenance: Inspect the coarse range selector contacts annually. Clean oxidized contacts with 320-grit emery cloth; do not use steel wool or coarse abrasives.
- Annual output calibration: Verify CC output at 200 A and 350 A using a calibrated shunt/ammeter. Verify CV output at 24 V, 28 V, and 36 V. Drift greater than ±3% warrants factory service or adjustment of the feedback pot.
Q: What is the difference between the K1308-25 and other IDEALARC DC-400 configurations?
A: The K1308-25 suffix specifies 230/460 V, 3-phase, 60 Hz input power and includes standard Twist-Mate output terminals with 14-pin feeder control receptacle. Other configurations in the DC-400 family include 200/400 V variants for European markets (K1308-26) and single-phase input options for limited 3-phase availability. Always confirm the suffix matches your facility's supply voltage before ordering.
Q: Can the IDEALARC DC-400 run a submerged arc welding (SAW) setup?
A: Yes. In CV mode, the DC-400 supports SAW with compatible Lincoln automatic wire feeders (NA-3, NA-5). SAW applications typically operate at 25–38 V arc voltage and 400–700 A, so the DC-400's 400 A maximum limits it to smaller SAW configurations — primarily 1/16 in to 3/32 in wire diameters at moderate travel speeds.
Q: How does the SCR output stage differ from standard diode rectifiers?
A: SCR (Silicon Controlled Rectifier) circuits allow electronic control of the output waveform, resulting in a smoother DC arc with lower ripple current (typically <5% ripple vs. 10–15% in diode-bridge machines). This translates to less spatter, better puddle control at low amperage, and improved arc starts. The SCR stage also enables more precise remote voltage/amperage adjustment compared to tap-switched diode rectifiers.
Q: What wire feeders are compatible with the DC-400's 14-pin receptacle?
A: Lincoln's LN-7, LN-8, and LN-9 bench-mounted wire feeders all use the 14-pin control cable for analog voltage/wire speed control from the DC-400. The LN-25 Pro portable feeder uses a separate 5-pin or twist-mate connection. All ArcLink-compatible feeders (Power Feed 10, 25M, 25Plus) are NOT directly compatible with the DC-400's analog 14-pin interface — an adapter or separate interface board is required.
Q: Is the IDEALARC DC-400 suitable for TIG welding?
A: Yes, for DC TIG (scratch start or with an external high-frequency start unit). In CC mode, the DC-400 provides the stable current output required for TIG. For aluminum TIG (AC output), the DC-400 is not suitable. A dedicated AC/DC TIG machine or an AC/DC power source with balance control is needed for aluminum.
Q: What is the rated input amperage, and what breaker size do I need?
A: At 460 V, 3-phase, the DC-400 draws approximately 42 A at rated output (400 A / 36 V). Per NEC 630.12, the minimum branch circuit breaker is calculated at 200% of the rated input amperage for resistive welders, or use the manufacturer's recommendation of a 100 A, 3-pole circuit breaker at 460 V. Always consult a licensed electrician for installation.
Q: Can I use the auxiliary 115 V outlet to power a grinder or light?
A: The front-panel 115 V / 15 A GFCI-protected auxiliary outlet is intended for low-power accessories — angle grinder, trouble light, or small drill. Do not exceed 1,500 W (about 13 A at 115 V) continuous draw. The auxiliary circuit is protected by a thermal circuit breaker that resets automatically after cooling if overloaded.
