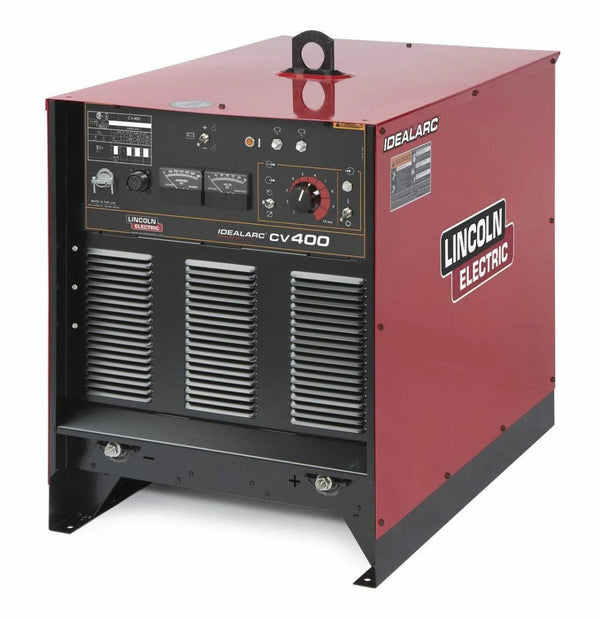

The Lincoln Idealarc CV-400 (K1346-13) is Lincoln Electric's heavy-duty three-phase constant-voltage MIG and flux-cored power source — engineered for continuous industrial production welding at output levels that portable single-phase machines cannot sustain. Rated 400 A at 36 V at 100% duty cycle, the CV-400 is the backbone MIG machine for fabrication shops, structural steel contractors, and heavy manufacturing operations running semiautomatic wire welding around the clock.
- 400 A / 100% duty cycle — no cool-down cycles, ever. The Idealarc CV-400 is rated 400 A / 36 V / 100% duty cycle and 450 A / 38 V / 60% duty cycle. At maximum rated output (400 A), the machine runs continuously without interruption. For production environments where multiple operators weld in sequential shifts, the CV-400's continuous output capability eliminates downtime from thermal shutdowns — a critical requirement in structural steel, pressure vessel, and heavy manufacturing applications.
- 500 A maximum output for high-deposition submerged arc and large-diameter wire. The CV-400 output range runs from 60 A to 500 A. The 500 A upper limit supports large-diameter wire applications — .052" and 1/16" (1.6 mm) solid wire, and .045"–1/16" flux-cored wire in high-deposition production MIG. The 500 A ceiling also provides headroom for automated and semi-automated wire welding cells where burst output exceeds rated output.
- Three-phase input — runs on any heavy industrial power. The K1346-13 operates on 230/460 V, 3-phase, 60 Hz. Three-phase input current draw is balanced across phases, reducing voltage drop and improving power quality in shops with multiple welding machines running simultaneously. The CV-400 can be wired for either 230 V or 460 V three-phase — dual-voltage flexibility covers both domestic-standard 230/460 V U.S. shops and older 208/220 V industrial facilities.
- Heavy-duty analog construction — proven for industrial use. The Idealarc CV-400 uses Lincoln's rugged Idealarc platform construction — transformer-based constant voltage output, heavy copper windings, and cast aluminum components. The platform has proven decades of reliable service in automotive assembly plants, shipyards, and structural fabrication shops where electronic inverter-based machines face the harshest EMI and power quality environments.
- Wire feeder compatibility — drives any Lincoln LF or Activ8X feeder. The CV-400's 14-pin Lincoln interface connector and 42 V / 115 V auxiliary receptacle power any Lincoln Activ8X, LF-74, or classic Wire-Matic wire feeder. Semiautomatic flux-cored and solid wire MIG configurations support single-operator, dual-operator, and tandem-arc setups with equal consistency.
- Robust output for structural flux-cored welding. Innershield NR-232 and NR-305 1/16" flux-cored wire at 350–425 A / 38–42 V runs continuously on the CV-400 for high-deposition structural fillet and groove welds. The 100% duty cycle at 400 A covers the full AWS D1.1 structural weld size range in passes exceeding 10 minutes without pause — critical for pass-per-pass FCAW on thick material with pre-qualified WPS procedures.
- 3-year Lincoln Electric warranty on new units. Full factory warranty on the K1346-13 power source.
| SKU / Model | K1346-13 / Idealarc® CV-400 |
| Processes | MIG (GMAW), Flux-Cored (FCAW-G), Flux-Cored Self-Shielded (FCAW-S) |
| Input Voltage | 230/460 V, 3-Phase, 60 Hz (field-wireable for either voltage) |
| Input Current | 77/39 A (230/460 V at rated output) |
| Output Range | 60–500 A DC, 12–42 V |
| Rated Output (100% duty cycle) | 400 A / 36 V |
| Rated Output (60% duty cycle) | 450 A / 38 V |
| Welding Mode | CV (constant voltage) |
| Polarity | DC |
| Phase | Three-phase |
| Amphenol Connector | 14-pin Lincoln standard |
| Wire Feeder Supply | 115 VAC / 42 VAC receptacle |
| Dimensions (H×W×D) | 27.5" × 22.2" × 32" (699 × 564 × 813 mm) |
| Net Weight | 383 lbs (174 kg) |
| Warranty | 3 Years (Lincoln Electric factory) |
| Condition | New — Lincoln Electric K-prefix (factory-new) |
- Idealarc CV-400 Power Source (K1346-13)
- Work Cable and Clamp
- 14-pin Amphenol Wire Feeder Interface
- Note: Wire feeder (LF-74 or Activ8X), gun/cable assembly, and shielding gas regulator are sold separately — the CV-400 is a power source sold as a stand-alone unit designed for use with a dedicated wire feeder.
The Idealarc CV-400's 14-pin Lincoln interface and high-amperage output support the full range of Lincoln industrial MIG accessories:
- MIG Welding Cables & Power Pins — Heavy-duty Magnum PRO 300 and 400 L gun-cable assemblies in 15 ft and 25 ft lengths rated to 300–400 A for continuous production MIG; replacement quick-connect power pins and feeder interconnecting cables for the 14-pin Lincoln standard interface.
- MIG Contact Tips — Production contact tips in .035", .045", and 1/16" for high-current solid and flux-cored wire; standard and long-reach heavy-duty tips rated for 400+ A continuous output; threaded and slip-fit tip styles for Lincoln Magnum Pro gun bodies.
- MIG Welding Guns — Lincoln Magnum PRO 450 and 600 amp water-cooled gun assemblies for continuous high-deposition work; Magnum PRO 350L and 450L air-cooled guns for semi-automatic flux-cored; straight and curved neck bodies for horizontal fillet and overhead positions.
- MIG Welding Wire — Lincoln SuperArc L-56 .035"–.045" ER70S-6 for production mild steel MIG; Lincoln Innershield NR-232 and NR-305 1/16" flux-cored for high-deposition structural fillet welding; Lincoln Metalshield MC-6 metal-cored .045" for high-speed automotive and structural spray transfer; Lincoln 316L and 309L stainless wire for pressure vessel and chemical plant work.
- Wire Feeders — The CV-400 requires a dedicated wire feeder. Compatible units include the Lincoln LF-74 (industrial 14-pin) and Activ8X multi-process feeder; older Wire-Matic 255 and LN-25 Pro portable feeders for field applications. All connect via the standard 14-pin Amphenol interface.
- Welding Gas Regulators — High-flow CGA-580 dual-stage argon/CO₂ blend regulators rated to 100 CFH for production MIG at 300–450 A; bulk gas regulators with 400 psi inlet for manifold systems; Harris and Lincoln dual-stage industrial regulators for 24-hour shop environments where single-stage regulators exhibit freeze-out at high flow rates.
The Idealarc CV-400's 500 A maximum output and 400 A / 100% duty cycle rating make it the standard industrial MIG power source for heavy production welding environments:
- Structural steel fabrication — AWS D1.1 production. The CV-400 runs continuous flux-cored wire welding at 350–425 A for multi-pass fillet and groove welds on structural steel from 1/4" through 2" and heavier. At 400 A / 100% duty cycle, the CV-400 never interrupts production for thermal rest periods — essential for shops running two-shift structural fabrication where downtime directly impacts delivery schedules and labor costs.
- Light fabrication and general MIG production. For shops needing a heavy-duty power source to drive a dedicated LF-74 or Activ8X wire feeder for all-day production MIG on mild steel and stainless, the CV-400 provides more continuous output capability than any single-phase machine in Lincoln's lineup. Typical applications include light truck frame components, agricultural equipment frames, and general manufacturing weldments in 1/4"–3/4" mild steel.
- Structural steel — heavy plate and column connections. Flux-cored welding of heavy structural connections (W-shapes, HSS columns, moment frame connections) requires continuous high-amperage output and wire feeder coordination. The CV-400 drives 1/16" Innershield NR-305 or NR-232 at 38–42 V / 350–425 A for pre-qualified FCAW procedures per AWS D1.1 Table 3.1 without output variation or duty cycle interruption.
- Sheet metal production — automotive and HVAC manufacturing. At lower output settings (60–150 A), the CV-400 drives .035"–.045" ER70S-6 for production sheet metal MIG on 18–10 gauge mild steel. The 14-pin wire feeder interface allows automated and robotic wire feeder integration for repetitive production MIG on body panels, chassis components, and HVAC equipment housings.
- Aluminum MIG — push-pull spool gun and pulsed MIG. The CV-400's output range (60–500 A) and wire feeder interface support push-pull aluminum MIG setups for .035"–3/64" ER4043 and ER5356 wire on heavy aluminum plate, marine aluminum, and aerospace structural components. At 180–260 A with 75/25 Ar/He shielding, the CV-400 produces spray transfer on 1/4" and thicker 6061 aluminum with excellent fusion and low porosity.
The CV-400 output range is 12–42 V DC, corresponding to the 60–500 A output range. Welding voltage is controlled via the front-panel fine and coarse voltage controls. Per the Lincoln Electric product page, rated output at 100% duty cycle is 400 A / 36 V; maximum 500 A output corresponds to approximately 40–42 V in the high-voltage range for large-diameter flux-cored wire.
The CV-400 itself is a power source — wire size compatibility depends on the paired wire feeder. When used with a Lincoln LF-74 or Activ8X feeder, it feeds .025"–1/16" (0.6–1.6 mm) solid wire and .035"–5/64" flux-cored wire. The 500 A maximum output provides full driving capability for large-diameter 1/16" and 5/64" wires at production deposition rates without voltage sag.
Three-phase only — the K1346-13 requires 230/460 V, 3-phase, 60 Hz input. It is not compatible with single-phase power. For single-phase environments requiring high output, see the Lincoln POWER MIG 256 (K3068-2), which operates on 230/460/575 V single-phase at up to 300 A, or the POWER MIG 220 AC/DC (K5379-1) for dual-voltage 120/230 V single-phase applications.
The CV-400 is rated 400 A / 36 V / 100% duty cycle — meaning it can weld continuously at 400 A without thermal shutdown. At 450 A / 38 V, duty cycle is 60%. Maximum output is 500 A (approximately 40 V), which is recommended only for burst welding passes on large-diameter wire at high deposition rates. For production flux-cored welding on structural steel, 350–400 A at 100% duty cycle is the typical operating range.
The CV-400 is a constant-voltage (CV) wire welder — it is optimized for MIG and flux-cored semiautomatic processes, not open-arc stick or TIG pipe welding. For pipeline work, it excels at semi-automatic hot-pass and fill-pass flux-cored welding on API 5L X65 and X70 pipe using self-shielded Innershield wire. For root pass Stick and TIG, pipeline contractors typically pair the CV-400 with a dedicated CC (constant current) machine such as a Lincoln Ranger or Vantage engine-driven welder at the pipe joint.
